Кратки характеристики:
-
1 мегапикселова HD-CVI високоскоростна куполна камера
-
20х оптично увеличение
-
16х цифрово увеличение
-
1/3” Exmor CMOS сензор
-
Day&Night с механичен IR филтър
-
инфрачервено осветление до 100м
-
0.05 Lux в цветен режим
-
0 Lux в ч/б режим (IR on)
-
1280х720 с 50кад/сек некомпресиран сигнал
-
Pan 3600, Tilt от -15 до +900
-
255 Preset позиции
-
управление по коаксиален кабел или RS-485
-
BLC, HLC, DWDR, ATW, AGC, 2D/3D DNR
-
маскиране на 24 зони
-
2 алармени входа и 1 изход
-
1 аудио вход
-
за външен монтаж
-
IP66
-
термостатиран кожух с вентилатор
-
отопление и стойка, 24VAC, 26W
Подробни характеристики:
-
20x optical zoom
-
25/30/50/60fps@720P resolution
-
DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
-
Control over coaxial cable, long distance real-time transmission
-
Max 240°/s pan speed, 360° endless pan rotation
-
Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
-
Built-in 2/1 alarm in/out
-
Support intelligent 3D positioning with DH-SD protocol
-
IR Distance up to 100m
-
IP66, OSD
Camera
-
Image Sensor 1/3” Exmor CMOS
-
Effective Pixels 1280(H) x 960(V)
-
Scanning System Progressive
-
Electronic Shutter Speed 1/1 ~ 1/30,000s
-
Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
-
S/N Ratio More than 50dB
-
Resolution 720P(25/30/50/60fps)
-
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
-
Day/Night Auto(ICR) / Color / B/W
-
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
-
White Balance Auto, ATW, Indoor, Outdoor, Manual
-
Gain Control Auto / Manual
-
Noise Reduction 2D/3D
-
Privacy Masking Up to 24 areas
-
Digital Zoom 16x
Lens
-
Focal Length 4.7mm~94mm(20x Optical zoom)
-
Max Aperture F1.4 ~ F2.6
-
Focus Control Auto / Manual
-
Angle of View H: 54.1° ~ 3.2°
-
Close Focus Distance 100mm~ 1000mm
PTZ
-
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
-
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
-
Preset Speed Pan: 240° /s; Tilt: 200° /s
-
Preset 80(DH-SD), 255(Pelco-P/D)
-
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
-
Speed Setup Human-oriented focal length/ speed adaptation
-
Power up Action Auto restore to previous PTZ and lens status after power failure
-
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
-
Protocol DH-SD, Pelco-P/D (Auto recognition)
-
IR Distance 100m (2 near IR LED+ 4 far IR LED)
Audio
-
Interface 1 channel In
-
Auxiliary Interface
-
RS485 1
-
Alarm 2/1 channel In/Out
General
-
Power Supply AC 24V/3A (±10%)
-
Power Consumption 10.5W, 26W (IR on, Heater on)
-
Working Environment -40ºC ~ 60ºC / Less than 90% RH
-
Ingress Protection IP66
-
Vandal Resistance N/A
-

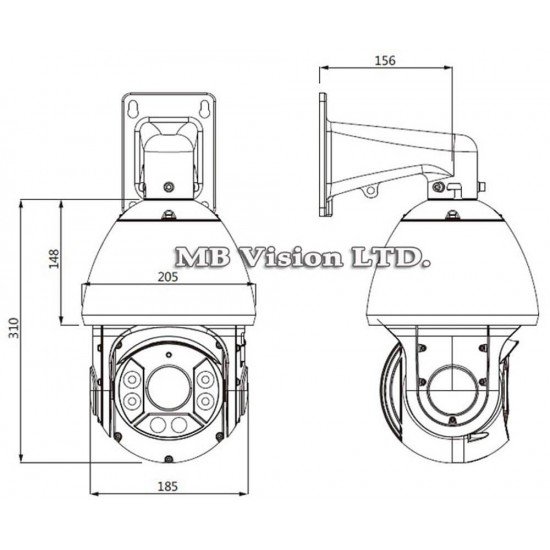

Dimensions Φ204.7(mm) x 335.9(mm)
-
Weight 7.5kg
