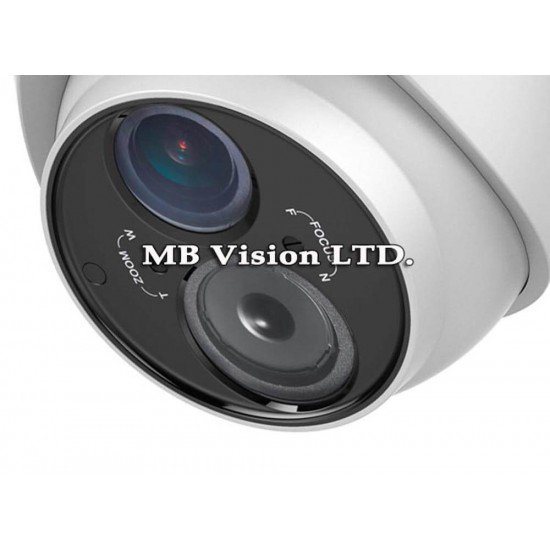

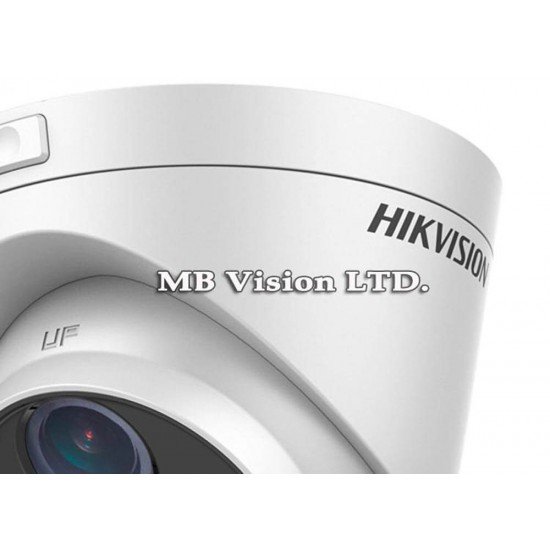

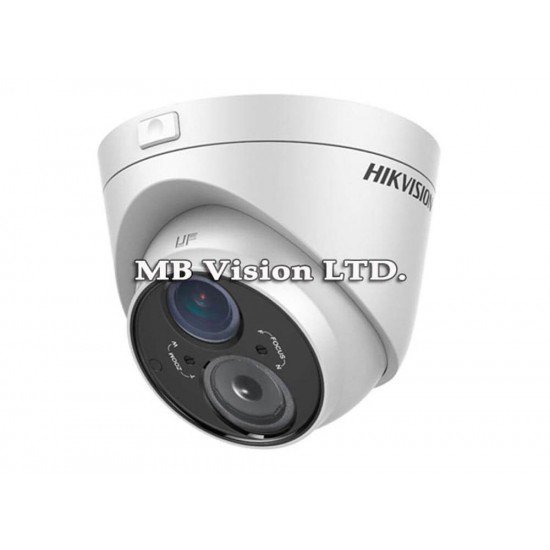

HD-TVI куполна камера 2 Мегапиксела (FullHD 1080p@25 кад/сек)
-
1/3'' Progressive Scan CMOS сензор
-
0.001 Lux
-
варифокален обектив 2.8~12 mm
-
EXIR технология с обхват до 40 м (Smart IR)
-
механичен IR филтър
-
DWDR
-
3D DNR шумов филтър
-
OSD меню с контрол по коаксиалния кабел
-
за външен монтаж (IP66) -20~60C
-
12Vdc/4.5W
Camera
-
Image Sensor: 1/3" Progressive Scan CMOS
-
Signal System: PAL/NTSC
-
Effective Pixels: 1920(H)*1080(V)
-
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
-
0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
-
Shutter Time: 1/25(1/30) s to 1/50,000 s
-
Lens: 2.8-12mm @ F1.4
-
Angle of view: 92° - 32°
-
Lens Mount: φ14
-
Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
-
Day& Night: IR cut filter with auto switch
-
Wide Dynamic Range: 120dB
-
Video Frame Rate: 1080p@25fps/1080p@30fps
-
HD Video Output: 1 Analog HD output
-
Synchronization: Internal Synchronization
-
Video Output: 1Vp-p Composite Output (75Ω/BNC)
-
S/N Ratio: More than 52dB
-
Up the Coax: Support
Menu
-
Camera ID: On/off (15 characters, position programmable)
-
D/N Mode: Color/ BW/ EXT
-
Auto White Balance: ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
-
Private Mask: On/Off, maximum 8 zones
-
Motion Detection: On/Off, maximum 4 zones
-
BLC: On/Off
-
AGC: Support
-
Anti-flicker: On/ Off
-
Language: English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
-
Function: Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
-
correction, SMART D-ZOOM
-
Scene: Indoor, Outdoor, Indoor1, LOW-LIGHT
General
-
Operating Conditions: -20 °C - 60 °C (-4 °F - 140 °F)
-
Humidity 90% or less (non-condensing)
-
Power Supply: 12 V DC ± 10%
-
(-A series support 24 V AC ± 10%, 12 V DC ± 10%)
-
Power Consumption: Max. 7W
-
Weather Proof: IP66
-
IR Range: Up to 50m
-
Dimension: φ130.54 × 93.24 mm (φ5.14” × 3. 67”)
-
Weight: 300 g (0.66 lb)
Приложение за мобилни телефони Android и Apple, както и софтуер за видеонаблюдение през компютър за системите за видеонаблюдение Hikvision можете да свалите от тук:
